XLPower Stratos 700 Helicopter Kit (*PRE-ORDER DEPOSIT) Without Blades

XLPOWER STRATOS 700

(WITHOUT BLADES)

THIS IS FOR PRE-ORDER ONLY, A BALANCE OF £849.00 WILL BE DUE ON DAY OF POSTAGE/ COLLECTION

----FIRST BATCH  DUE EARLY NOVEMBER-----

XLPOWER STRATOS 700 —KEY FEATURES

1. Fully Upgraded Bearing System

Upgraded One-Way Bearing – Increased one-way bearing size delivers 50%higher

torque capacity. * Integrated 19mm One-Way Bearing Sleeve – Designed for maintenance-free operation. * Zero-Play One-Way Bearing Sleeve – Eliminates rotational play for instant power

transfer and direct, delay-free drivetrain response. * Larger Swashplate Bearing – Upgraded to a 35×47×10mm double-row angular contact

bearing for increased stability and precision. 2. Next-Generation Reinforced Tail Drive System

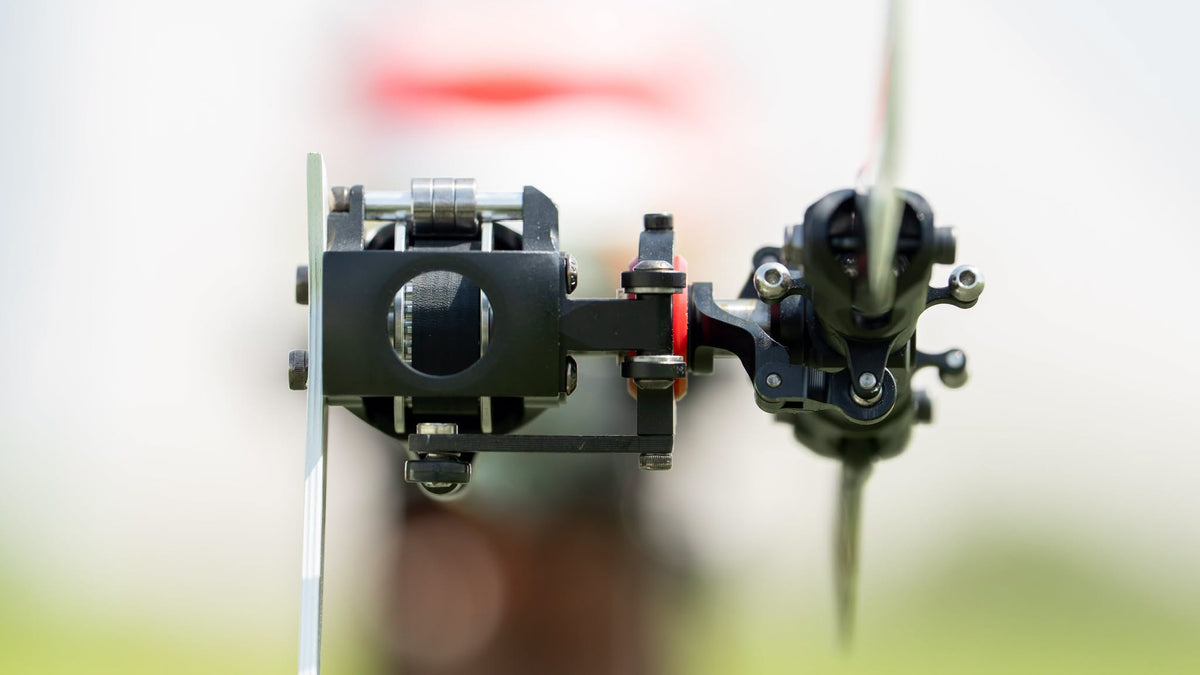

Featuring larger ball bearings, shafts, and spindles, this next-generation tail drive delivers exceptional strength, ultra-smooth operation, and ultra-sharp precision—even in the most extreme manoeuvres. * Upgraded Tail Shaft Bearing – NSK 8×19×6mm bearing significantly increases durability. * Tail Shaft Diameter: 8mm

* Tail Spindle Diameter: 6mm

* Upgraded Bearings – All related bearings and thrust bearings upgraded accordingly. * PTFE-Sleeved Tail Pitch Slider Pin – Minimizes play, reduces friction and wear, ensuring smoother, more precise tail pitch control and improved long-term durability. 3. Heavy-Duty Belt Drive System

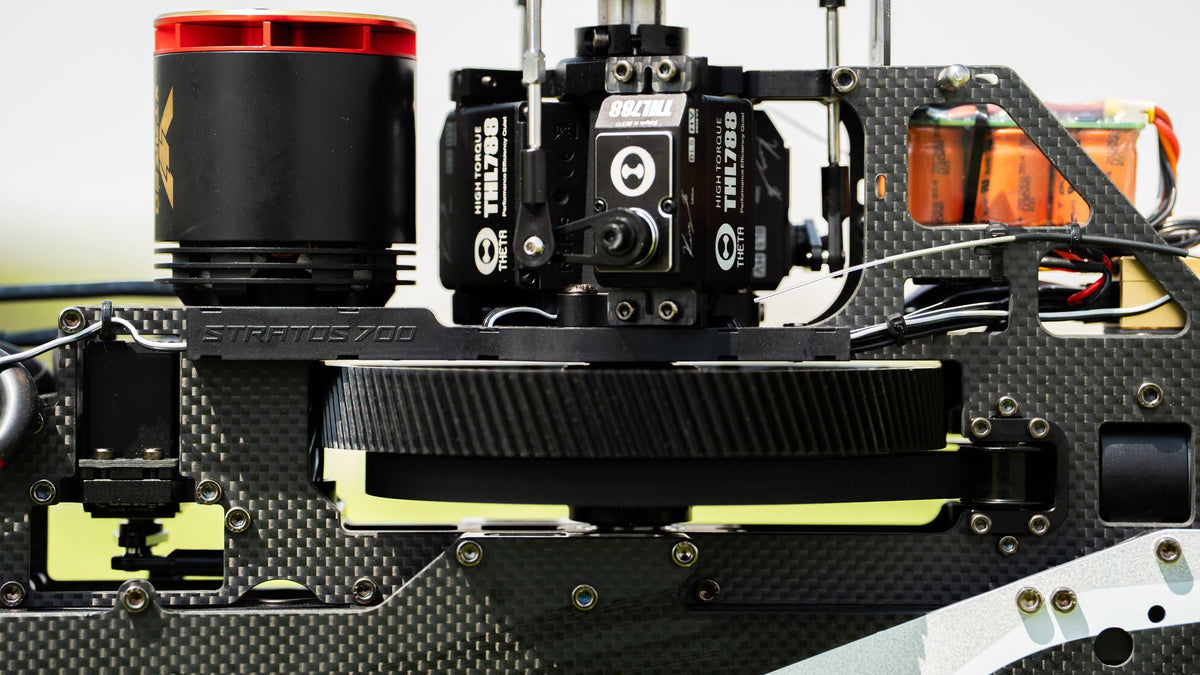

Built for extreme performance, the heavy-duty belt drive system handles maximum loads with exceptional shock resistance, delivering rock-solid power transfer, ultra-sharp response, and outstanding reliability—no matter how intense the flight. * Main Gear: 125T

* Tail Pulley: 119T

* Tail Drive Gear: 24T (25T optional) * Tail Belt Width: Standard 9mm (optional 10mm heavy-duty version)

4. Weighted Tail Blade Grips

Improved design for an exceptionally locked-in feel. * Reduces tail servo load. * Improves tail control efficiency. * Delivers smoother, more stable tail performance.

5. All-New Tail Boom Structure and Features * Custom-Profile Aluminium Tail Boom – Engineered for increased rigidity with a fully internal tail pushrod for cleaner, more precise routing. (Optional: Carbon fibre tail boom) * One-Piece 3mm Titanium Pushrod – Eliminates pushrod connection-failure risks while delivering precise, direct control. * External PTFE Guide System – Provides ultra-smooth, low-friction movement for

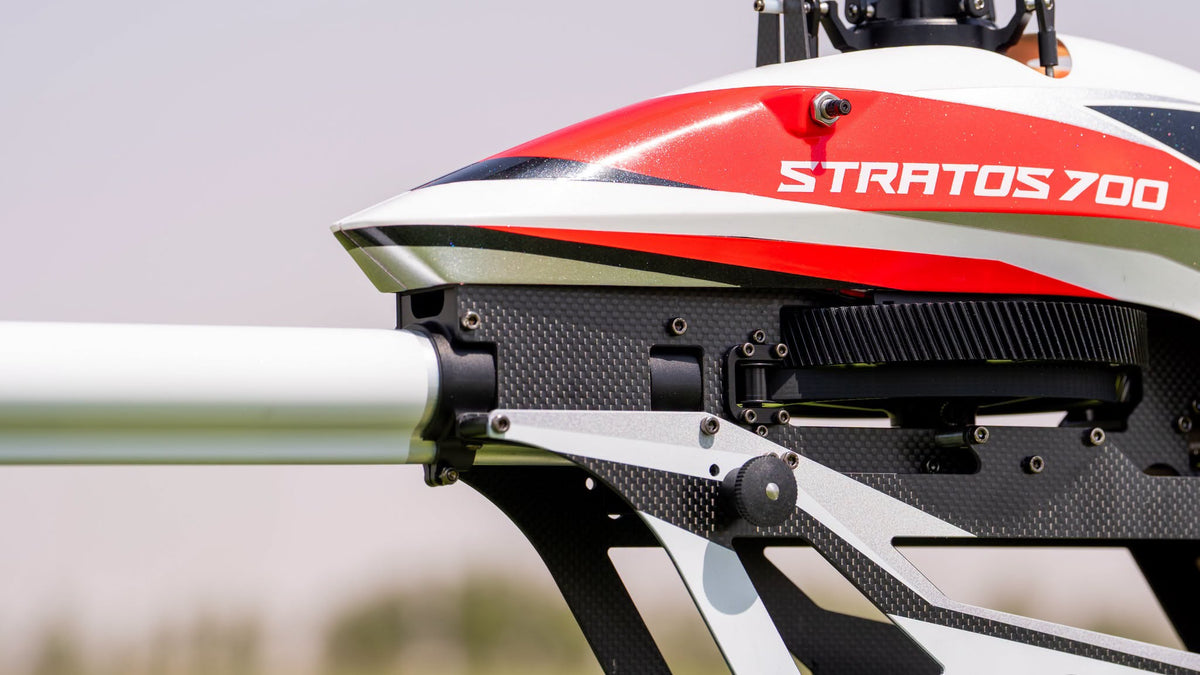

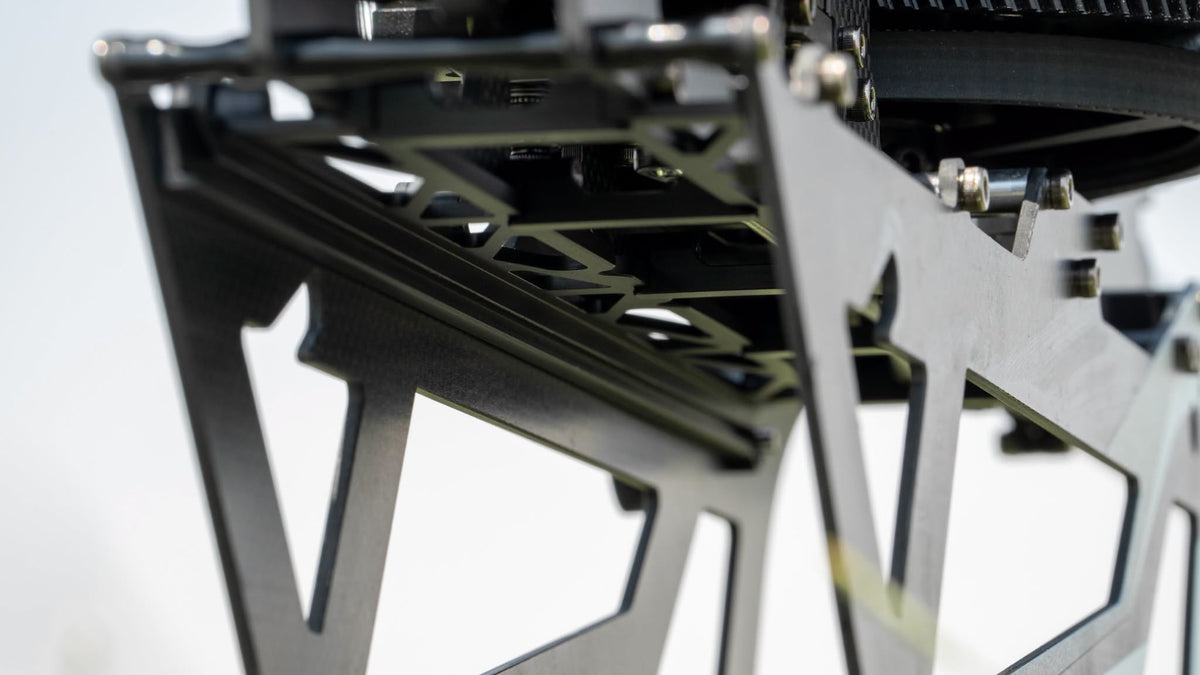

consistent tail response. * Anti-Rotation Boom Design – Ensures stable and precise tail alignment. 6. High-Rigidity Carbon Fiber Frame Plates * 2.5mm Upper Frame – The thick 2.5mm carbon fiber upper frame significantlyenhances structural rigidity, providing a stronger, more durable, and stable airframe. * 2mm Lower Frame – The precision-machined 2mm carbon fibre lower frame features distinctive painted detailing for enhanced visual appeal and easy identification. * Precision-Finished Edges – All carbon fiber frame edges are carefully chamfered and finished to eliminate sharp edges and burrs, ensuring a clean, premium finish. 7. High-Rigidity Main Rotor Control System

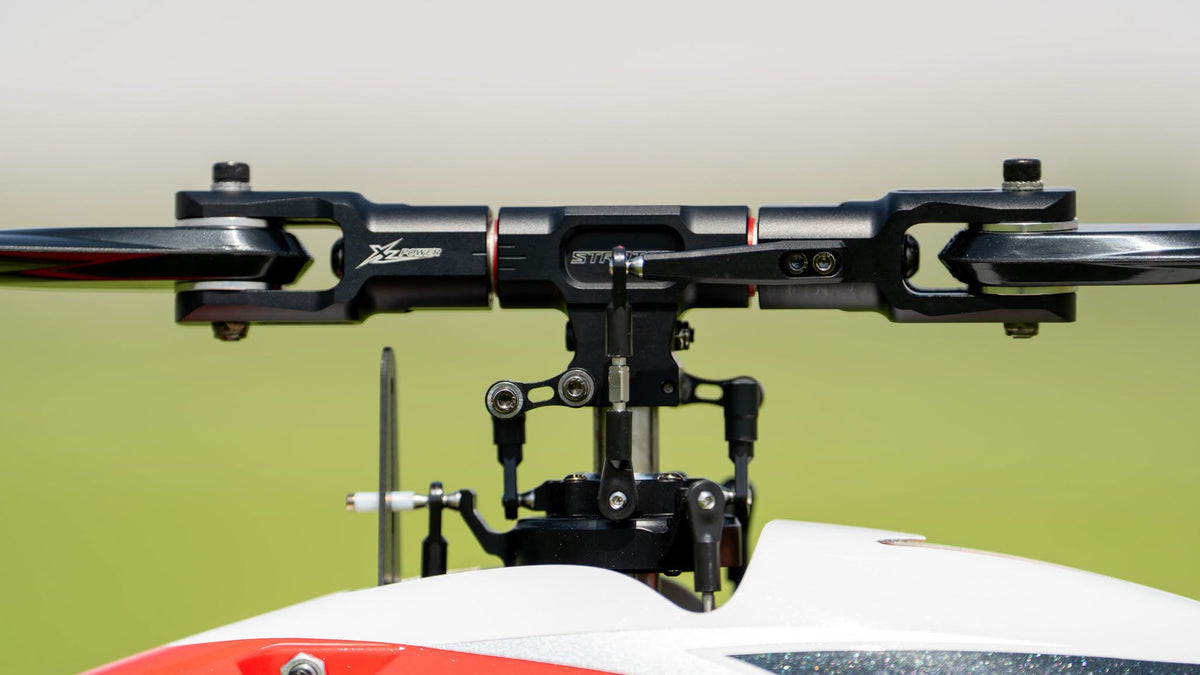

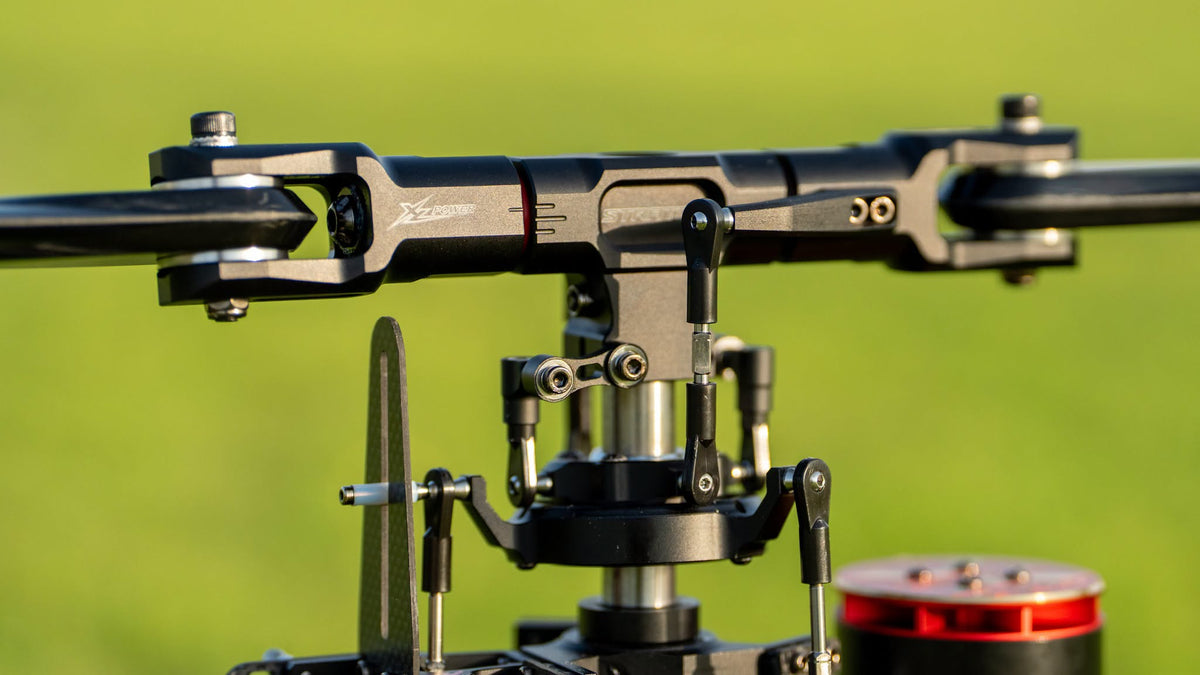

The innovative reverse-mounted ultra-short phase arm delivers extremely high rigidity, stable phasing, and exceptional control precision for a crisp, responsive, and predictable main rotor feel. * Predictable Response – The helicopter reacts exactly when and where you command. * Crisp Cyclic – No lag, just clean, direct inputs. Controls stay centered and consistent, flight after flight. * Pinpoint Precision – Noticeably sharper in fast forward flight, hard stops, and aggressive3D. * PTFE-Sleeved Swashplate Anti-Rotation Ball – Minimizes play and reduces friction, ensuring smoother, more precise swashplate movement and consistent control response. * Anti-Loosening Main Blade Bolt Washers – Help prevent main blade bolts from loosening during flight, reducing the risk of boom strikes and improving flight safety. 8. Integrated Main Frame Structure

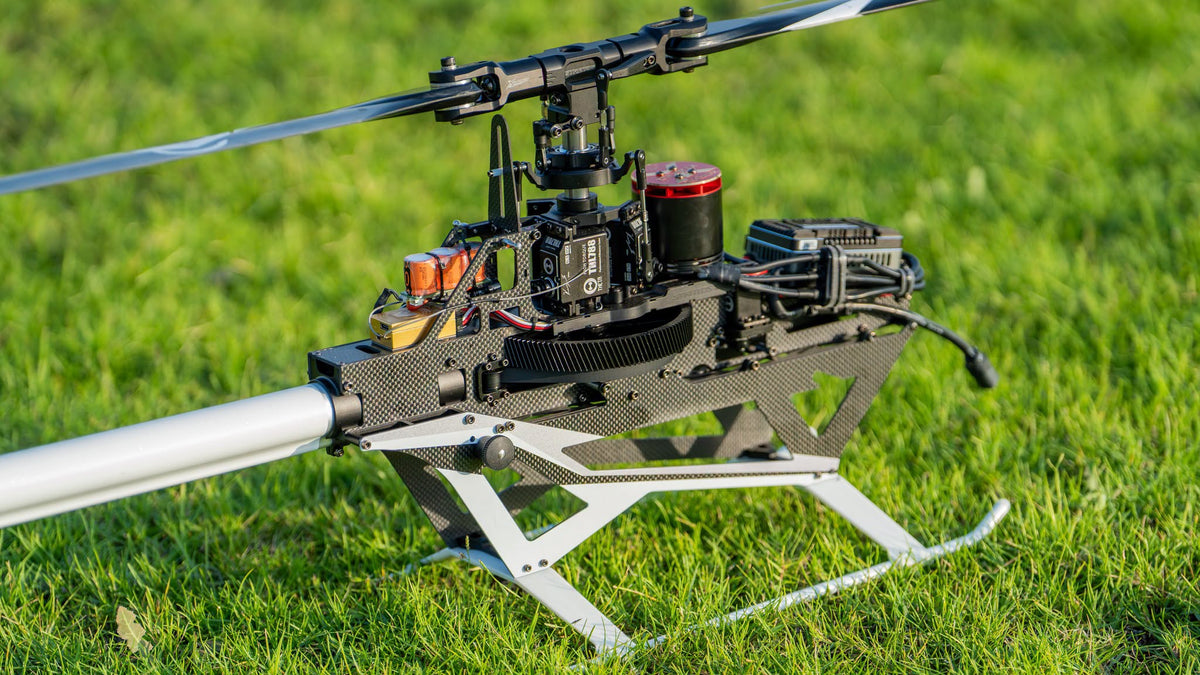

Reengineered for greater strength and rigidity, the main frame seamlessly integrates the chassis and electronics, with carefully balanced weight distribution for optimal

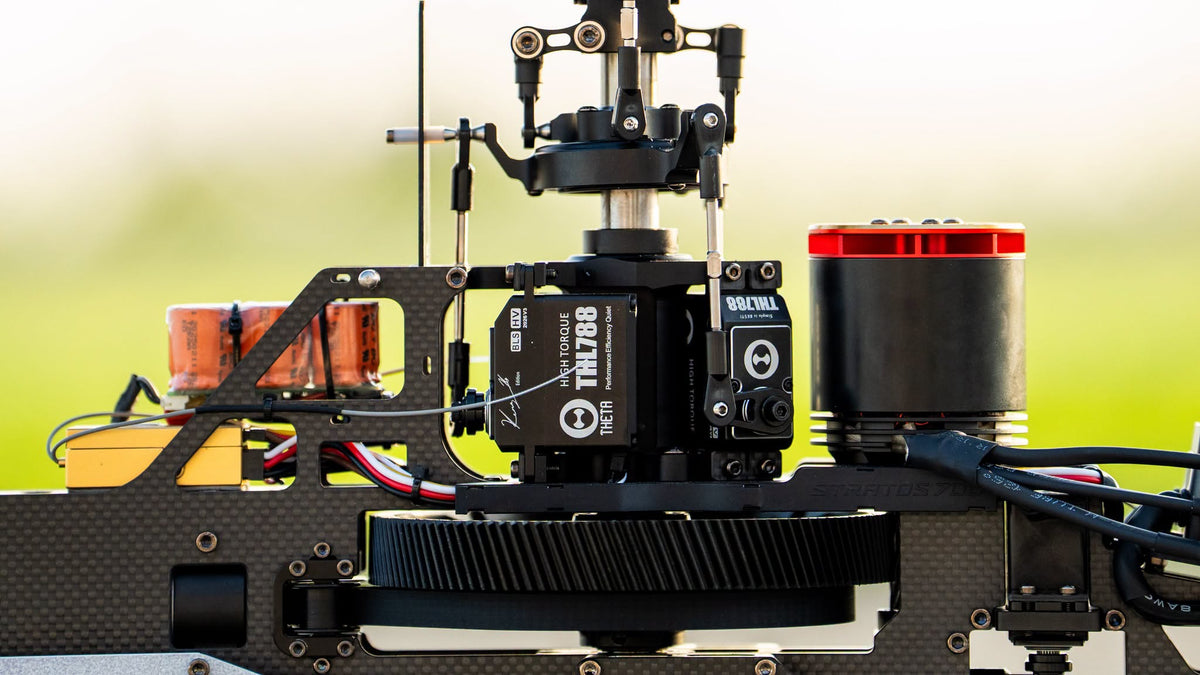

performance and stability. * Integrated Main Shaft Block and Servo Mount – The redesigned main shaft block and servo mount create a stronger, more rigid structure, enhancing overall durability and

providing rock-solid support for precise, responsive control. * 120° Evenly Distributed Geometry – The 120° geometry distributes loads evenly, delivering sharper control, consistent response, and smoother handling in every manoeuvre. * One-Piece Motor Mount – The one-piece motor mount ensures precise gear alignment

while making motor installation and removal quick, easy, and hassle-free. 9. New Battery and Wiring System

* Innovative Arched Battery Tray Rails – The battery tray sits securely within the curved rails, preventing unwanted movement during hard stops. The battery tray can be inserted from the rear. (Optional: Quick-release battery connector) * M3 Through-Bolts – Link the upper and lower rails, boosting overall frame rigidity for

rock-solid performance. * Internal Wire Routing Channels – Integrated wire routing channels reinforce the upper

frame structure while keeping wiring neatly covered, with no zip ties needed. The result isa cleaner and safer installation. 10. Efficient Compact Design

Designed with a more compact structure and centralized mass, while the main shaft and intermediate assembly are lowered by 15mm, creating a lower, more stable profile for

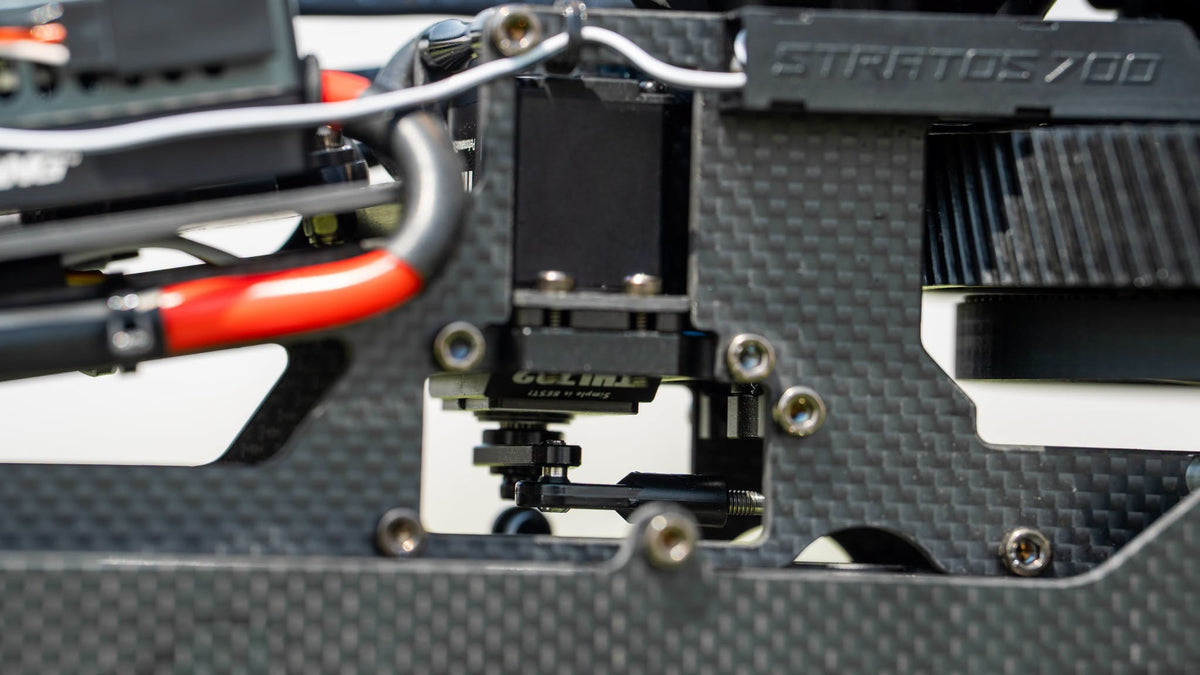

sharper, more controlled flight. * Front-Mounted, Top-Positioned Tail Servo – Positioned at the front and top, the tail

servo optimizes the centre of gravity and delivers faster, sharper control response. The design also provides a clean, modern appearance and improved aerodynamic performance. * Easy Maintenance – Despite the high-rigidity structure, maintenance remains quick and convenient. ⸻

STRATOS 700 — Engineered for Extreme 3D. Next-generation performance. Enhanced rigidity. Reduced maintenance.

STRATOS 700 — TECHNICAL SPECIFICATIONS

* Main Rotor Diameter: 1588 mm

* Tail Rotor Diameter: 294 mm

* Overall Length: 1398 mm

* Height: 359 mm

* Width: 217 mm

* Airframe Weight: 2360 g

Rotor Head & Control System

* Rotor Geometry: True 1:1 * Main Shaft Diameter: 15 mm

* Feathering Shaft Diameter: 10 mm

* Phase Arm Design: Reverse-Mounted Ultra-Short Phase Arm

* Damping Systems: * Extreme 3D: High-Rigidity Tapered Damping System (Included) * Sport: Standard O-Ring with POM Damping (Optional)

Drivetrain

* Main Gear: 125T

* Motor Pinion: 12T–14T (13T Standard) * Main Pulley: 119T

* Tail Pulley: 24T Standard (25T Optional) * Tail Belt Width: 9 mm Standard (10 mm Optional) * Tail Shaft Diameter: 8 mm

* Tail Spindle Diameter: 6 mm

Power System

* Motor Size: 4530 Class * Motor KV: 480–550 KV (12S Configuration) * ESC: 130–260A HV ESC

Battery System

* Battery Configuration: 12S LiPo (2 × 6S) * Maximum Battery Dimensions: 68 × 70 × 380 mm

* Recommended Capacity: 5000–6000 mAh

* Battery Mounting: Quick-Release Sliding Battery Tray

* Battery Tray Compatibility: Compatible with existing Specter battery trays. * Optional Quick-Release Battery Connector: Requires the new Stratos 700 battery tray.
