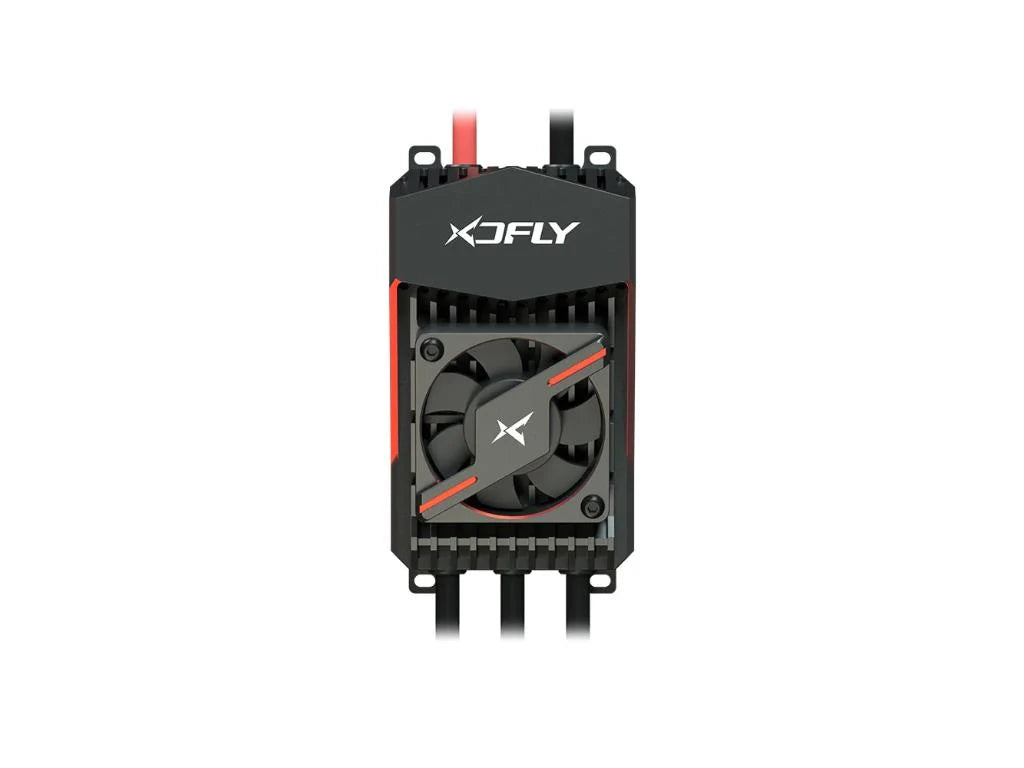

XDFly HPRO 300A ESC HV 6-14S XDF300A

XDFly HPRO 300A ESC HV 6-14S XDF300A

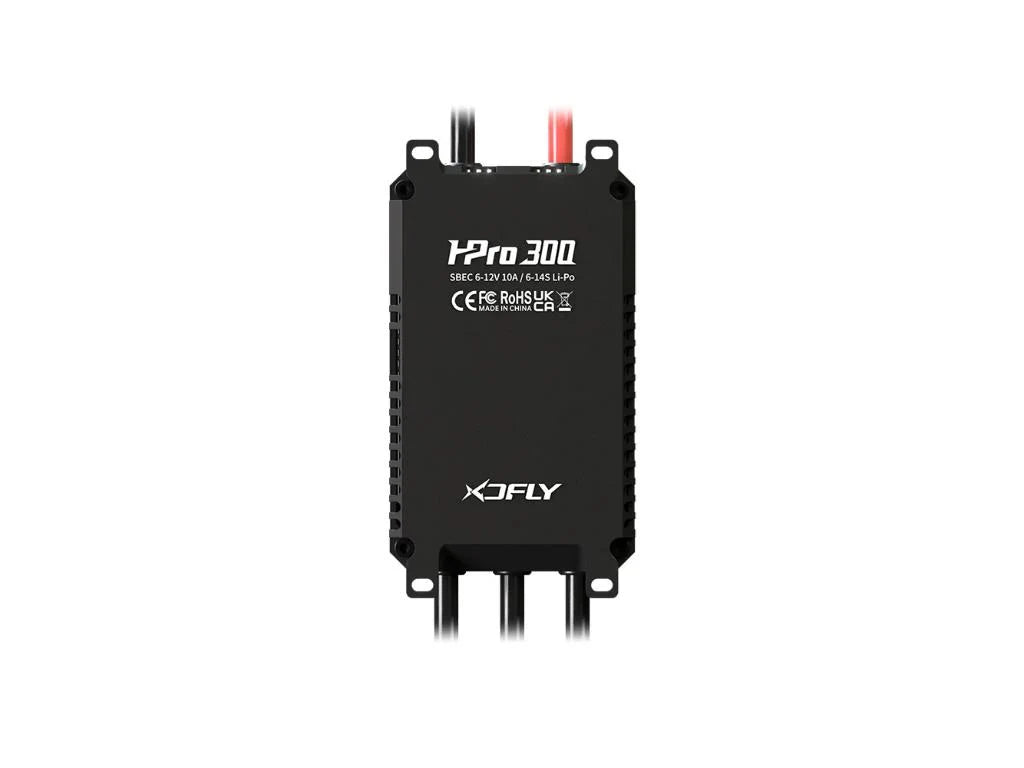

We (XDFly) have released HPRO 300A ESC HV 6-14S Built-in SBEC 6-12V Adjustable Speed Control For RC Airplane Aircraft F3A F3C 700-800 Helicopter.

Key Features:

1. Equipped with high-performance 32-bit G4 processor with operating frequency of up to 170MHz.
2. Adopting new generation of power MOSFET, it features low heat generation, high instantaneous current endurance and high reliability.
3. Self-check function: After power-on, the ESC will automatically self-check for power supply short circuit, motor phase loss, throttle zeroing, and voltage range.

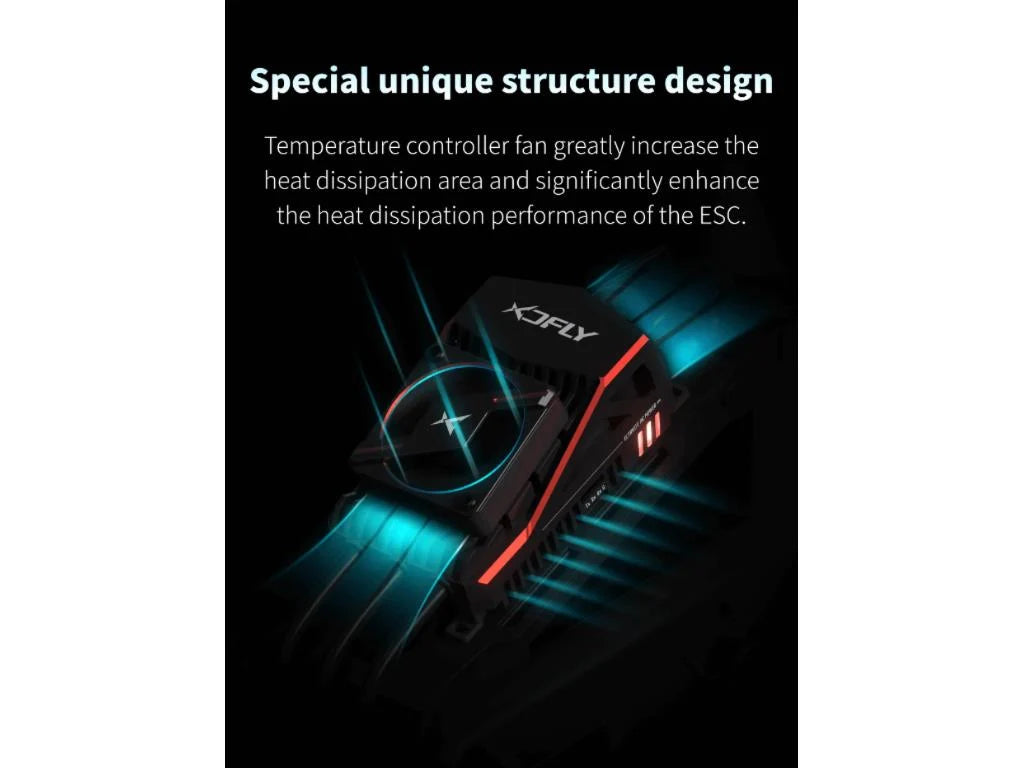

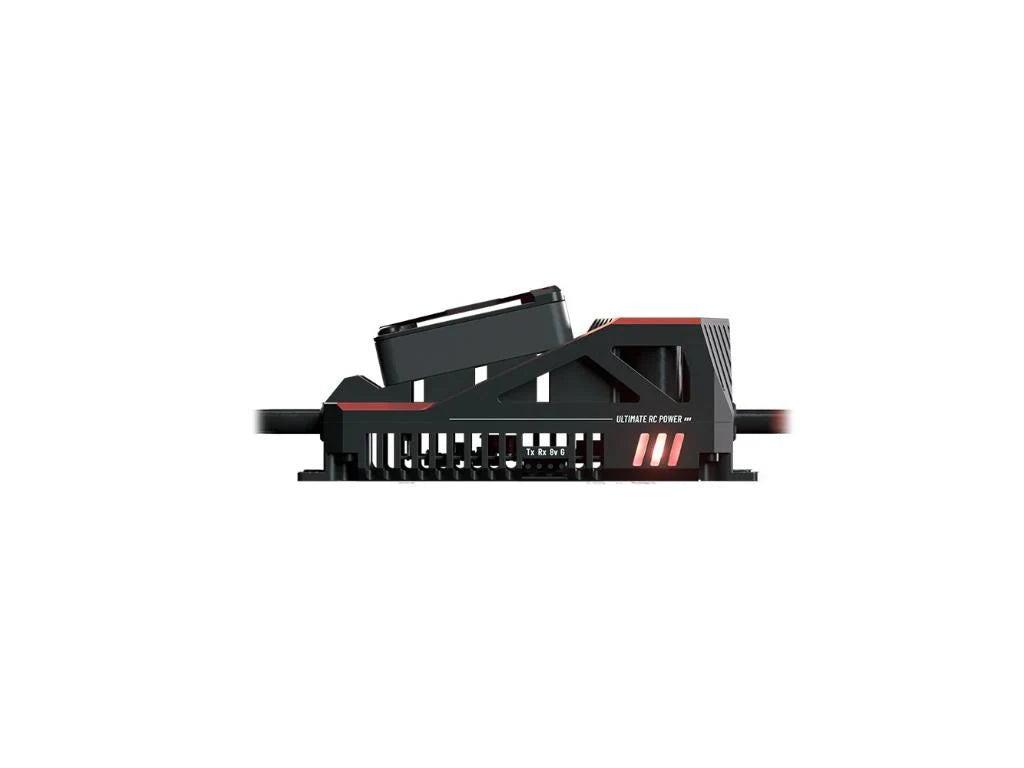

4. The special and unique case design greatly increase the heat dissipation area and significantly enhance the heat dissipation performance of the ESC.

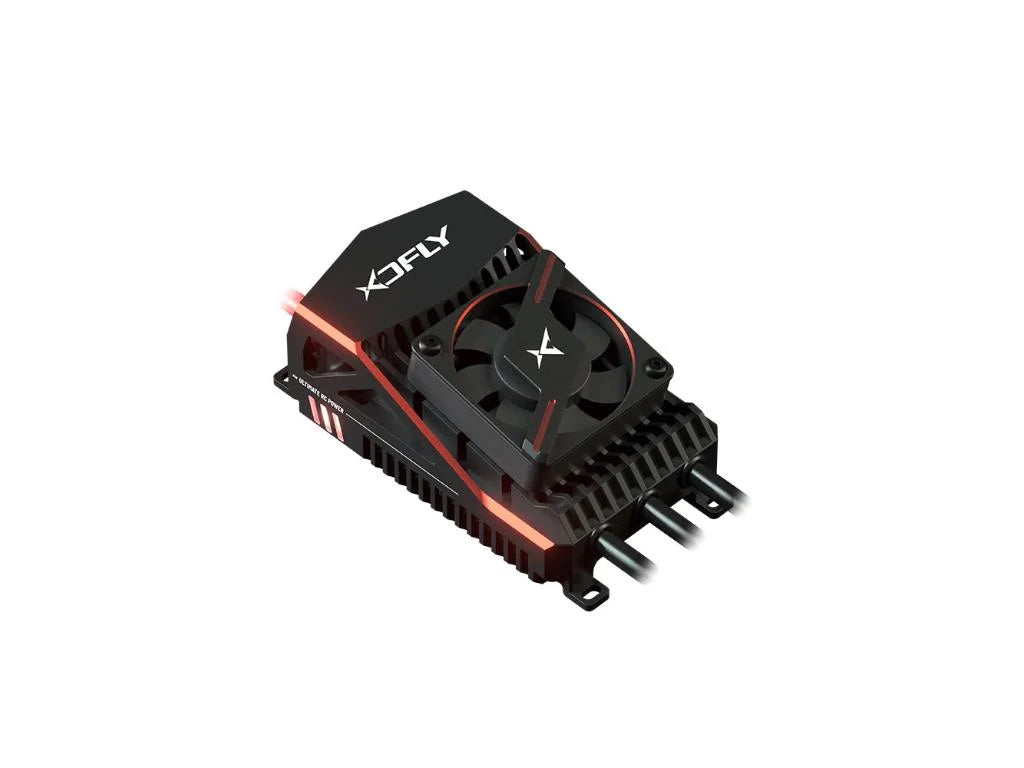

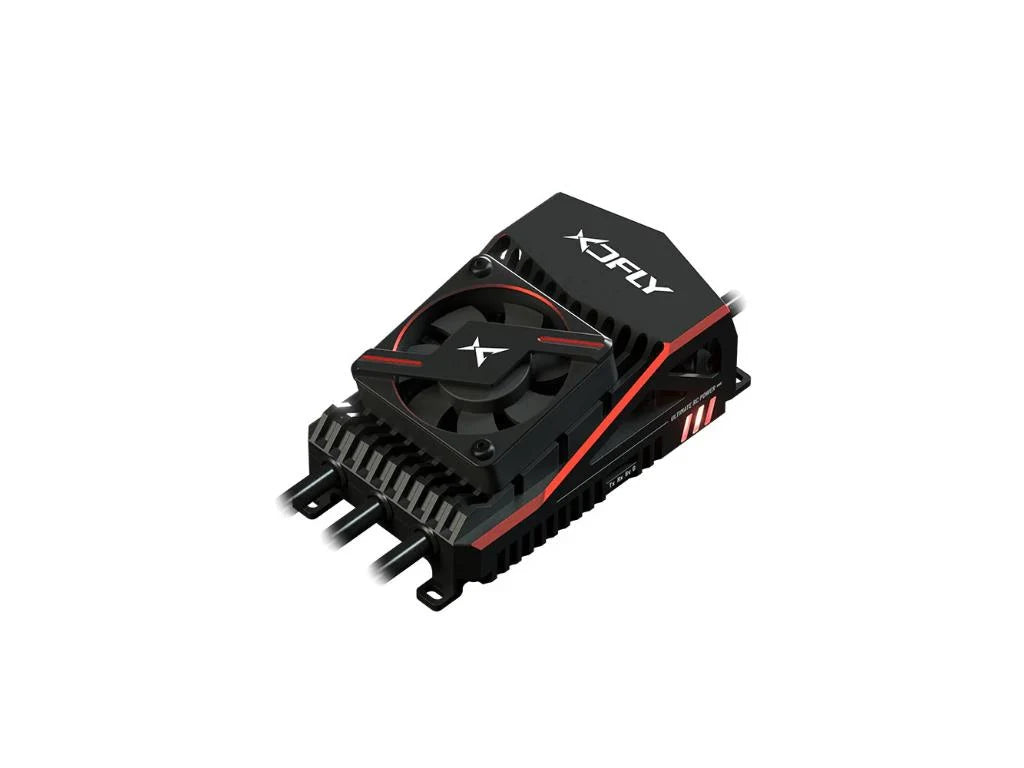

5. The smart temperature controlled fan will only start when the temperature exceeds 40 degrees, ensuring a quiet environment during the adjustment.
6. With helicopter speed governor function, the constant speed sensitivity can be adjusted and is easy to operate.
7. Equipped with the time selection function for stall landing, it can be manually adjustable within the time set to avoid a crash due to handling errors.
8. The ESC has an independent programming interface, it supports parameter adjustment via Phone APP/Mikado VBCT/E/Rotorflight2/Jeti remote control devices.
9. With telemetry function for Mikado VBCT/E, Rotorflight2, Futaba SBUS2, Jeti, MSH Brain, and iKon, allowing users to check data in real time.
10. Equipped with colourful LED lights including five optional colours for users: red, green, blue, yellow, and white, which indicate the ESC status through flashing modes.
11. Multiple protections: abnormal power-on voltage, start-up, temperature, throttle signal loss, over-load, low-voltage, over-current.

Specification:

Continuous Current(A) : 300A
Burst Current(A) : 400A
Input Voltage : 6-14S Lipo
BEC Output : 6-12V Adjustable; Current Cont.10A, Peak 35A
Size : 95x57x38mm(Without fan); 95x57x42mm(With fan)
Weight : 290g
Power Wire : 8 Gauge 205mm Red/Black
Motor Wire : 10 Gauge 150mm Black
Programming Way : XDFly Android&iOS APP/VBCT/E/RF2/Jeti
Telemetry : VBCT/E/RF2/Futaba SBUS2/Jeti/MSH Brain/iKon
Applications : 700-800 Class electric helicopters or fixed-wing aircrafts
