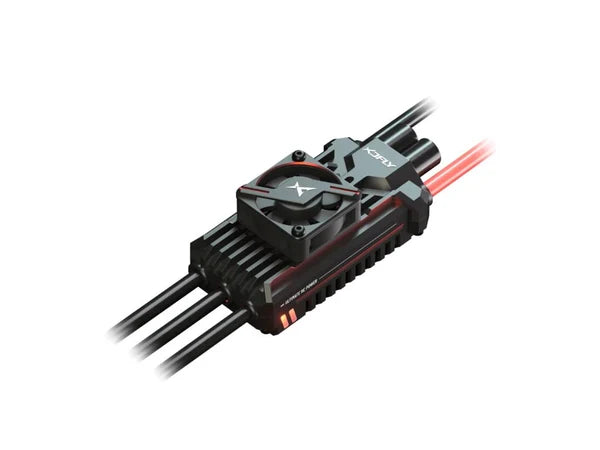

XDFly HPRO 155A HV ESC 3-8S SBEC : XDF155A

XDFly HPRO 155A HV ESC 3-8S SBEC : XDF155A

Description:

We (XDFly) have released HPRO 155A ESC 3-8S Built-in SBEC 6-12V Adjustable Speed Control For RC Airplane Aircraft F3A F3C 550-580 Helicopter.

Key Features:

• 1. Equipped with high-performance 32-bit G4 processor with operating frequency of up to 170MHz.
• 2. Adopting new generation of power MOSFET, it features low heat generation, high instantaneous current endurance and high reliability.
• 3. Self-check function: After power-on, the ESC will automatically self-check for power supply short circuit, motor phase loss, throttle zeroing, and voltage range.
• 4. The special and unique case design greatly increase the heat dissipation area and significantly enhance the heat dissipation performance of the ESC.
• 5. The smart temperature controlled fan will only start when the temperature exceeds 40 degrees, ensuring a quiet environment during the adjustment.
• 6. With helicopter speed governor function, the constant speed sensitivity can be adjusted and is easy to operate.
• 7. Equipped with the time selection function for stall landing, it can be manually adjustable within the time set to avoid a crash due to handling errors.
• 8. The ESC has an independent programming interface, it supports parameter adjustment via Phone APP/Mikado VBCT/E/Rotorflight2/Jeti remote control devices.
• 9. With telemetry function for Mikado VBCT/E, Rotorflight2, Futaba SBUS2, Jeti, MSH Brain, and iKon, allowing users to check data in real time.
• 10. Equipped with colourful LED lights including five optional colours for users: red, green, blue, yellow, and white, which indicate the ESC status through flashing modes.
• 11. Multiple protections: abnormal power-on voltage, start-up, temperature, throttle signal loss, over-load, low-voltage, over-current.

Specification:

• Continuous Current(A) : 155A
• Burst Current(A) : 260A
• Input Voltage : 3-8S Lipo
• BEC Output : 6-12V Adjustable; Current Cont.10A, Peak 35A
• Size : 90x43x25mm
• Weight : 178g
• Power Wire : 10 Gauge 145mm Red/Black
• Motor Wire : 10 Gauge 150mm Black
• Programming Way : XDFly Android&iOS APP/VBCT/E/RF2/Jeti
• Telemetry : VBCT/E/RF2/Futaba SBUS2/Jeti/MSH Brain/iKon
• Applications : 550-580 Class electric helicopters or fixed-wing aircrafts
