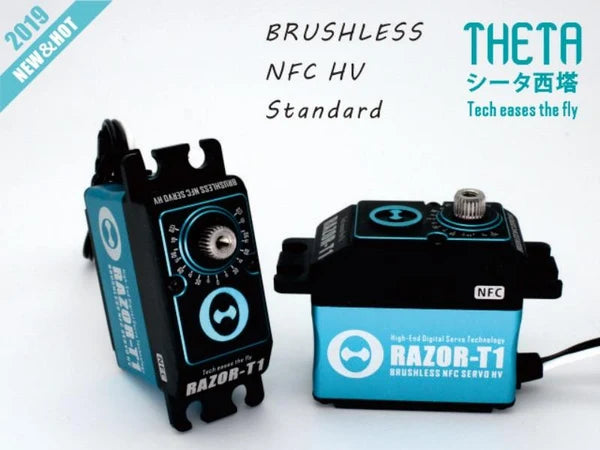

Theta Razor T1 NFC HV Brushless Tail Servo - Blue : TS-RT1
Theta Razor T1 NFC HV Brushless Tail Servo - Blue : TS-RT1
Note: This servo is programmable, and the centre pulse width can be changed between 760uS (default) or 1520uS. Please ensure both your servo and flybarless system are set to use the same centre pulse width to avoid issues.
This servo can run at up to 1000Hz when using 760 centre pulse width, and up to 333Hz when running at 1520 centre pulse width.
High voltage, standard size brushless 550, 600, 700 and even 800 class helicopters tail servo, airplanes, a great throttle or steering servo on most cars.
(SANWA SSR compatible)
| Voltage (V) | Current (A) |
Speed (s/60°) |
Torque(kg*cm) |
|
5.0 |
2.6 |
0.062 |
17 |
|
6.0 |
2.6 |
0.054 |
18 |
|
7.4 |
2.6 |
0.047 |
19 |
|
8.4 |
2.6 |
0.042 |
20 |
|
5.0 |
5.0 |
0.058 |
20 |
|
6.0 |
5.0 |
0.051 |
24 |
|
7.4 |
5.0 |
0.044 |
27 |
|
8.4 |
5.0 |
0.039 |
30 |
Defaults:
- Centre Pulse Width: 760
- Voltage: 8.4V
