Theta Kenny Ko HV - 12V Brushless Servo Set : TS-KKHV
Regular price
£469.99 GBP
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Theta Kenny Ko HV - 12V Brushless Servo Set : TS-KKHV

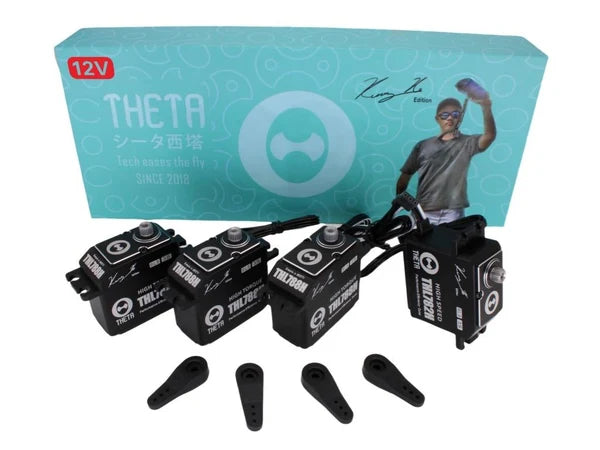

This is a box set, which includes 3x THL787H cyclic servos and 1x THL782H tail servo. The servos were optimised in collaboration with multiple time world champion, Kenny Ko.
- High Voltage 3S 12V
- High Speed
- Excellent Centering
- Compatible with Futaba type (25t) horns/arms
- Light Weight
Details and Specifications:
- Limit angle: 180 +-10° (500-2500 uSec)
- Operating travel: 90° (1000-2000 uSec)
- Rotating direction: Adjustable
- Connector wire length: 300 +- 5mm
- Connector wire gauge: #26PVC
- Dead band width: 2-4 uSec
| THL787H Cyclic Servo | |||
| Voltage (V) | Current (A) |
Speed (s/60°) |
Torque (kg*cm) |
|
7.5 |
4 |
0.09 |
24 |
|
9.0 |
4 |
0.08 |
28 |
|
11.1 |
4 |
0.07 |
33 |
|
12.6 (Default) |
4 |
0.06 |
38 |
|
Centre Pulse: 1520 uS Frequency: 50Hz to 1000 Hz |
|||
| THL782H Tail Servo | |||
|
Voltage (V) |
Current (A) |
Speed (s/60°) |
Torque (kg*cm) |
|
7.5 |
4 |
0.065 |
12 |
|
9.0 |
4 |
0.057 |
14 |
|
11.1 |
4 |
0.050 |
17 |
|
12.6 (Default) |
4 |
0.045 |
19 |
|
Centre Pulse: 760 uS Frequency: 50Hz to 1000 Hz |
