Tengu 4030EC Eclipse / 1150kV - 11969

Name: Tengu 4030EC Eclipse / 1150kV - 11969
Brand: Egodrift
SKU: 11969
Price: 309.99 GBP
Availability: InStock

£309.99 GBP

Tax included. Shipping calculated at checkout.

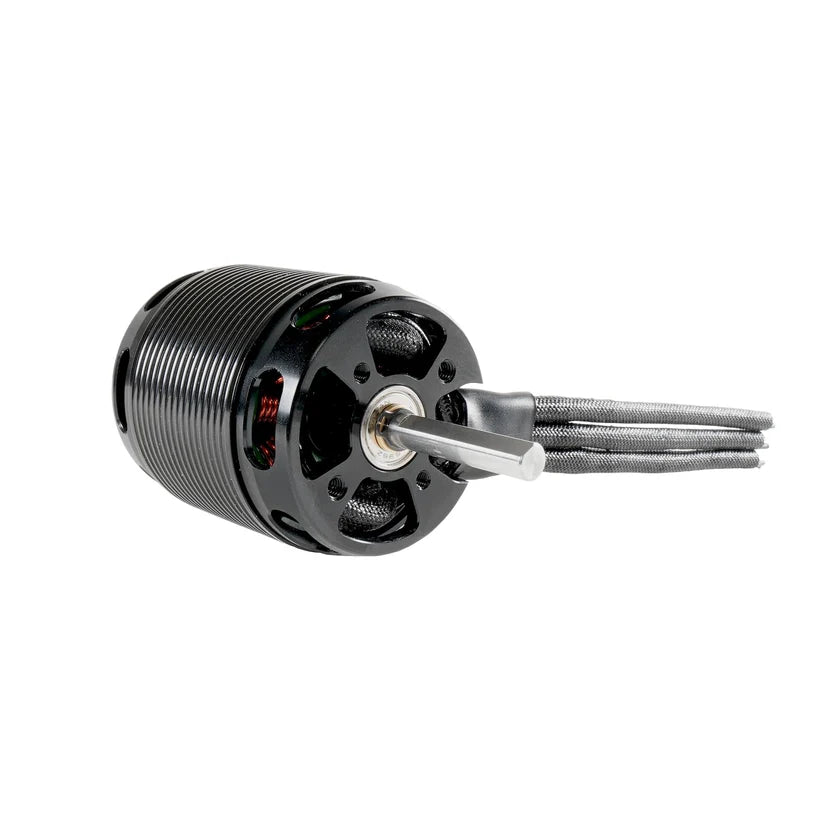

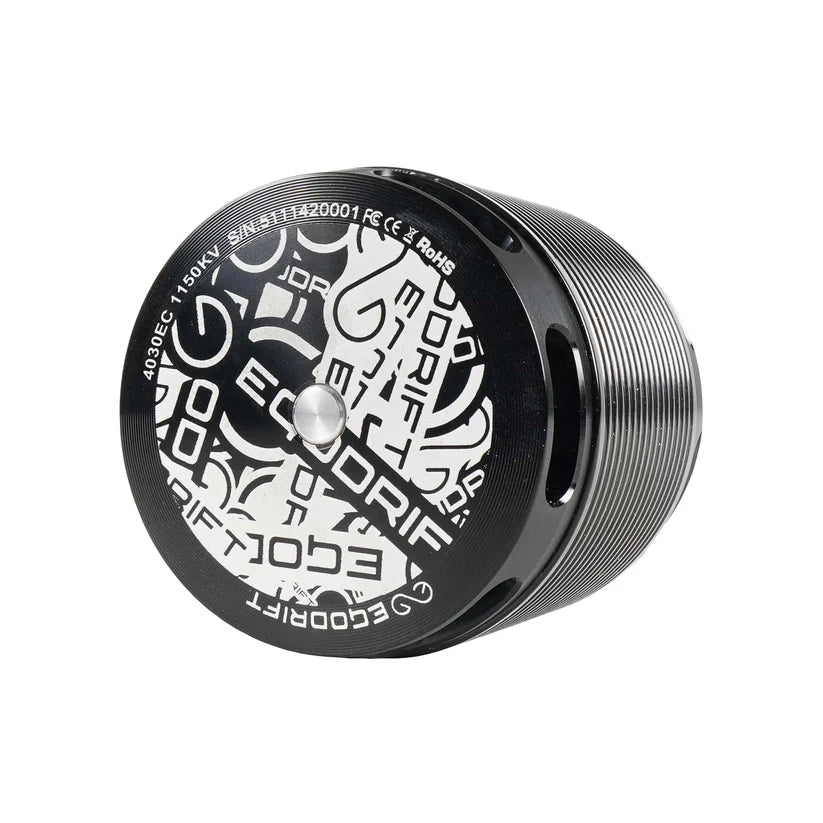

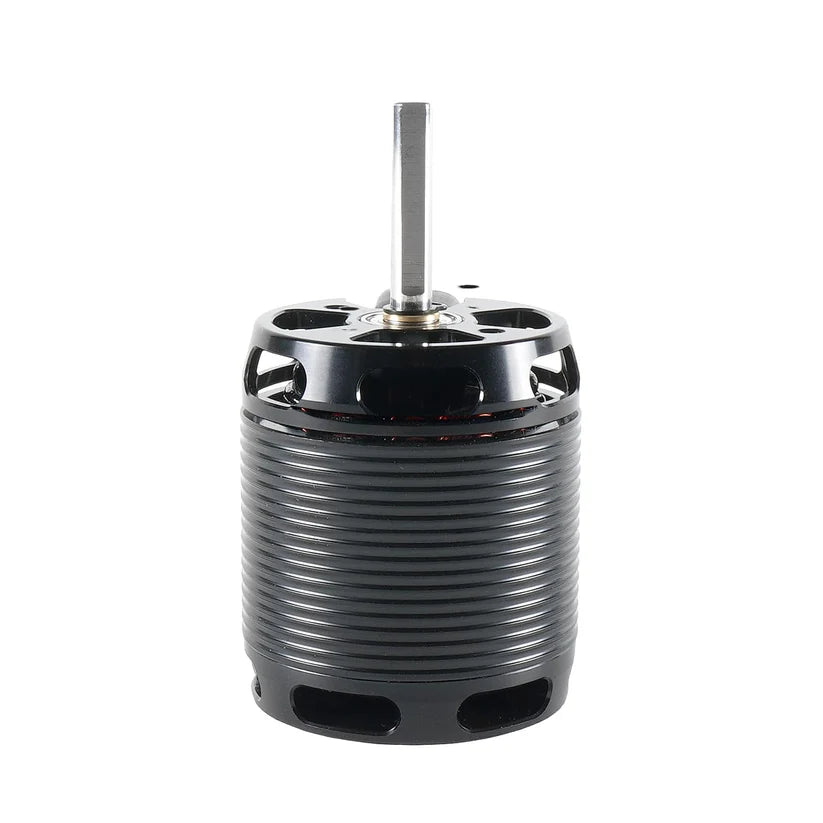

Tengu 4030EC Eclipse 1150kv

The perfect choice for your 550-580 size helicopter (and up to 610mm blades), featuring—and completely redesigned around—our new 40mm custom stator.

Experience the next step in high-performance brushless power with the EGODRIFT Tengu 4030EC Eclipse Series — a thoroughly redesigned motor that outperforms the Beta generation in every way.

Technical Highlights

Custom EGODRIFT stator
Tailored arc magnets for optimal power delivery
6mm shaft for further weight reduction
Base with 2×M4(30)+2xM3(25) mounting holes

Manufacturer:EGODRIFT

Stator size:4030

Motor configuration:12N10P (10-pole)

Motor weight:401.5 g

Motor Kv:1150 Kv

Mounting hole pattern:2xM4(30)+2xM3(25)

Laser Design:EGODRIFT Stickerbomb

Stator diameter:40 mm

Stator height:30 mm

Stator lamination:0.15mm (+)

Body length:57.5 mm

Body width:50.2 mm

Shaft diameter (external):6 mm

Shaft length (external):32 mm
