Tengu 4030EC Eclipse / 1050kV - 11967
Regular price
£309.99 GBP
Sale price
Regular price
Tax included.
Shipping calculated at checkout.

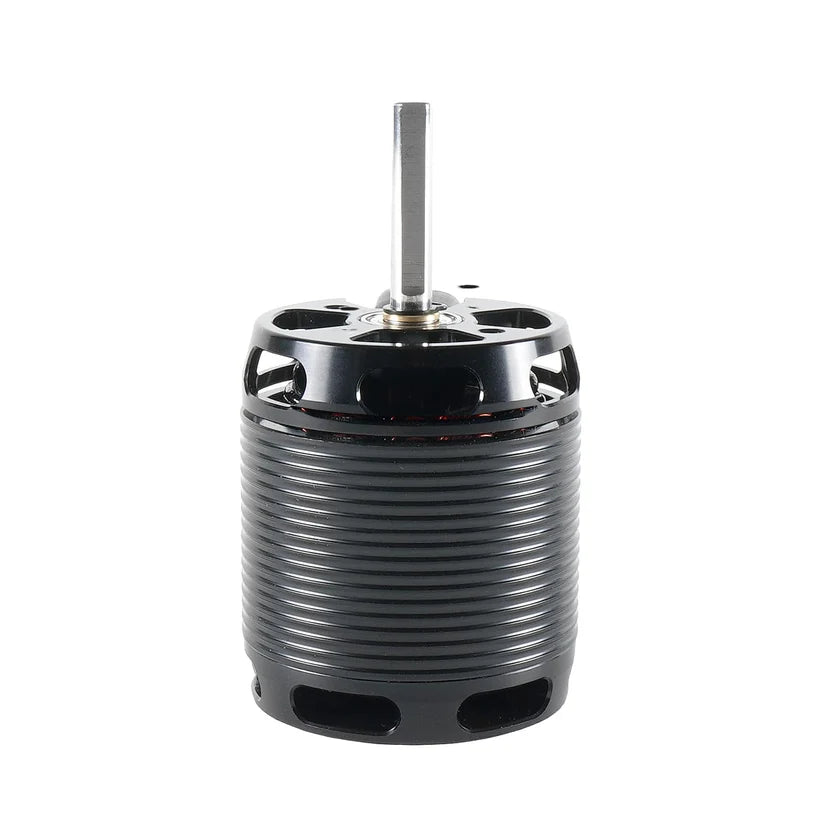

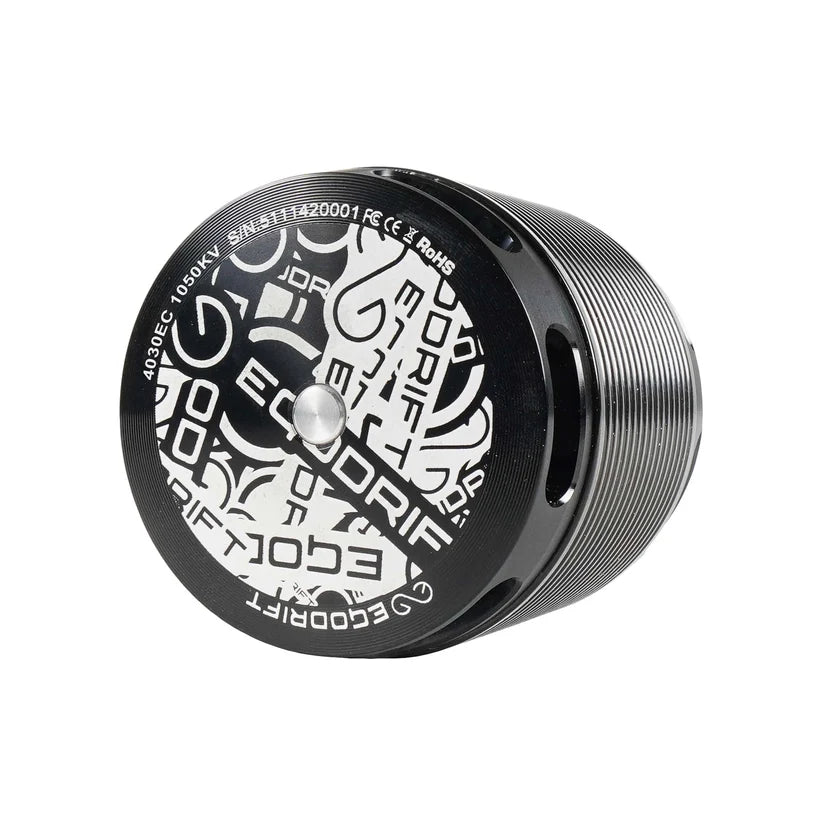

Tengu 4030EC Eclipse
The perfect choice for your 550-580 size helicopter (and up to 610mm blades), featuring—and completely redesigned around—our new 40mm custom stator.
Experience the next step in high-performance brushless power with the EGODRIFT Tengu 4030EC Eclipse Series — a thoroughly redesigned motor that outperforms the Beta generation in every way.
1050Kv & 1150Kv – Ideal choices for 6S configurations
Technical Highlights
Custom EGODRIFT stator
Tailored arc magnets for optimal power delivery
6mm shaft for further weight reduction

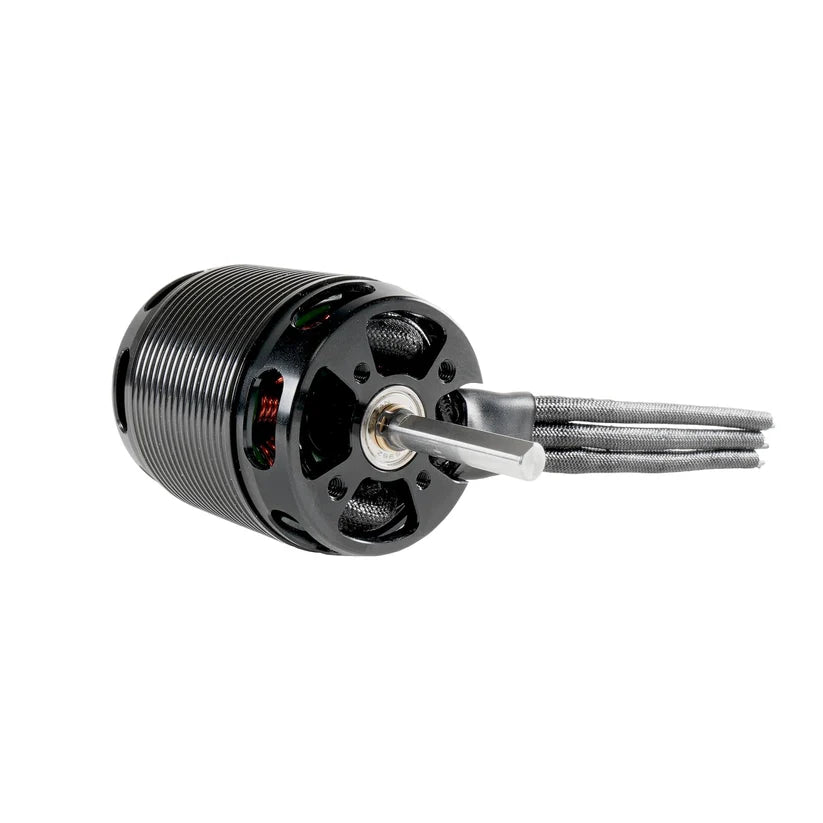

Base with 2×M4(30)+2xM3(25) mounting holes
Specifications:
Manufacturer:EGODRIFT
Stator size:4030
Motor configuration:12N10P (10-pole)
Motor weight:403 g
Motor Kv:1050 Kv
Mounting hole pattern:2xM4(30)+2xM3(25)
Laser Design:EGODRIFT Stickerbomb
Stator diameter:40 mm
Stator height:30 mm
Stator lamination:0.15mm (+)
Body length:57.5 mm
Body width:50.2 mm
Shaft diameter (external):6 mm
Shaft length (external):32 mm

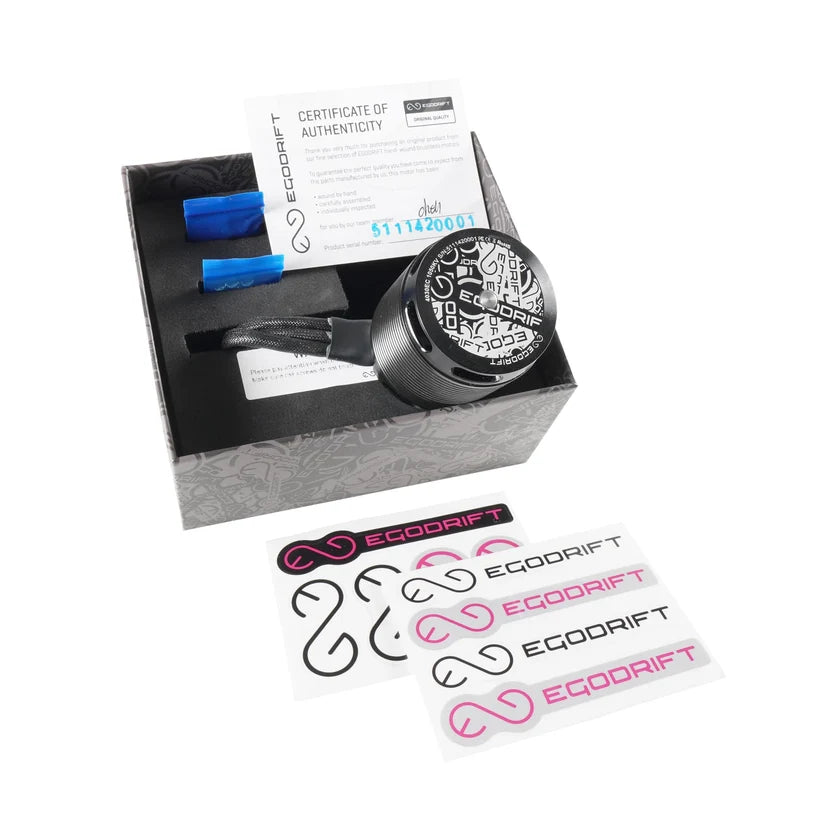

What's in the box
Box contents for
Tengu 4030EC Eclipse 1050Kv
