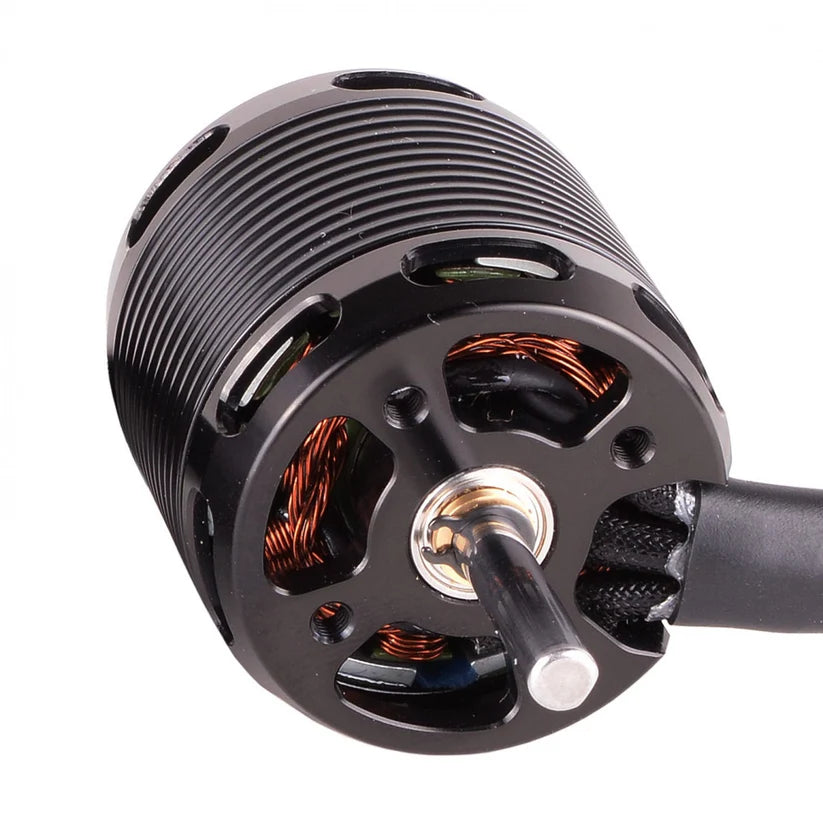

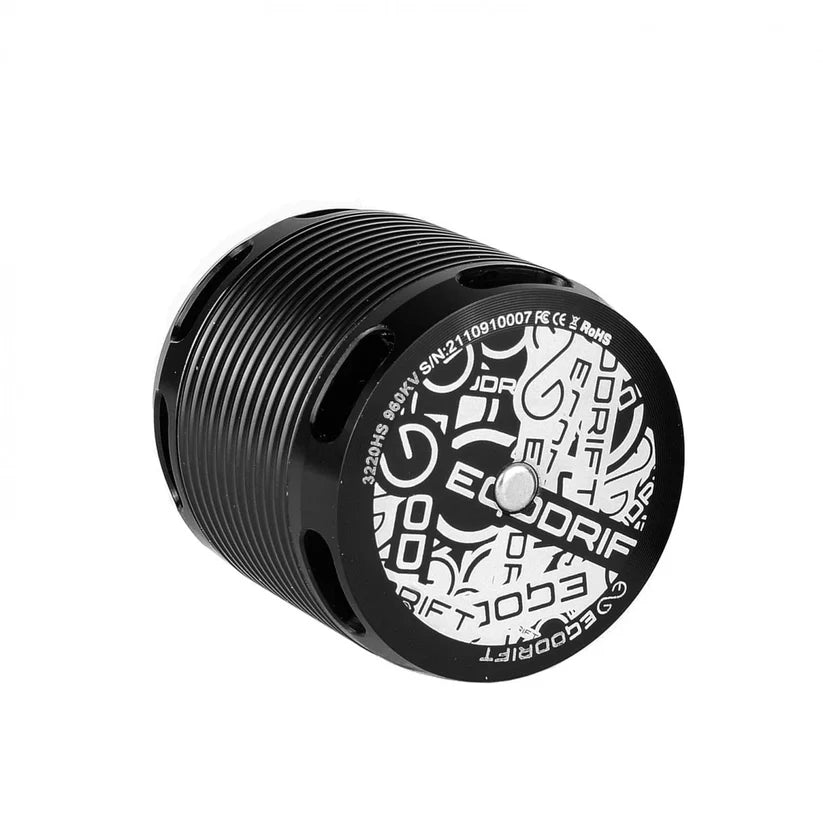

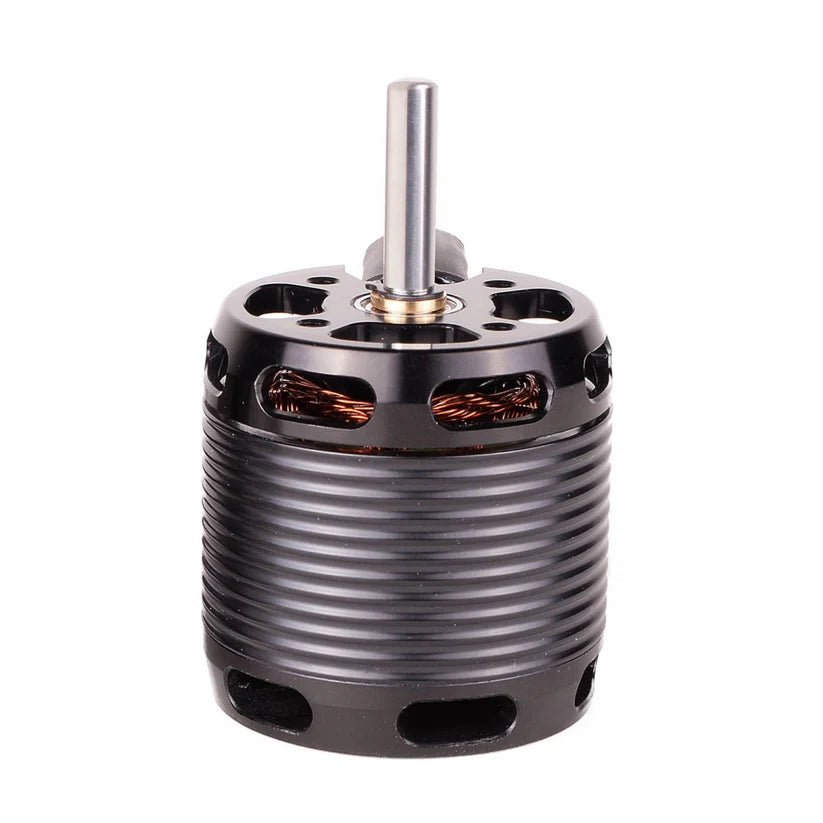

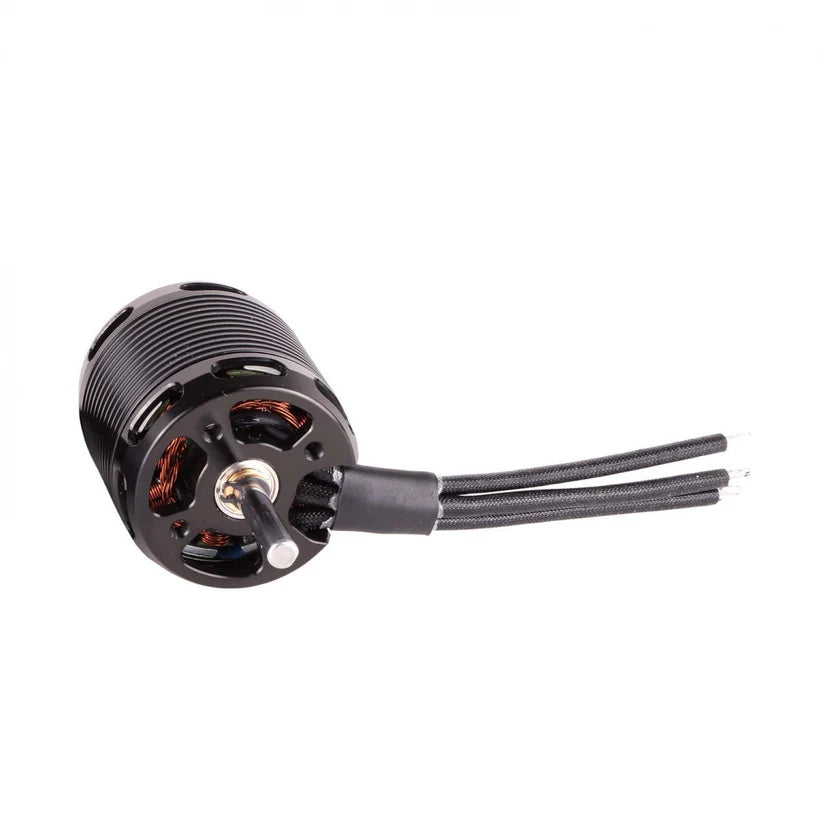

Tengu 3220HS (6S) 960kv - 11754
We might call it "Baby Tengu", but our 3220HS is a little devil and brings some serious power and fun to your 380 to 420 sized helis (and up to 500 size scale birds).
Hand-wound EGODRIFT Tengu 3220HS motor for 380-420 class rc helicopter models like the Goblin 420, Goblin 380 or Protos 380.
Manufacturer:EGODRIFT
Stator size:3220
Motor configuration:12N10P
Motor weight:180 g
Motor wire:0.38mm
Motor Kv:960 Kv
Mounting hole pattern:4xM3(25)
Laser Design:EGODRIFT Stickerbomb
Stator diameter:32 mm
Stator height:20 mm
Stator lamination:0.15mm (+)
Body length:40.5 mm
Body width:40.5 mm
Shaft diameter (external):5 mm
Shaft length (external):22 mm
Idle current:3.1A
Maximum current:60A (Peak: 70A / 2 seconds)
Maximum power:1680W (Peak: 2000W / 2 seconds)
Internal resistance:22.1 mOhm
What's in the box
Box contents for
Tengu 3220HS (6S) 960Kv
