TB40 Top Combo RH40E01X (T-REX)
Regular price
£499.99 GBP
Sale price
Regular price
Tax included.
Shipping calculated at checkout.

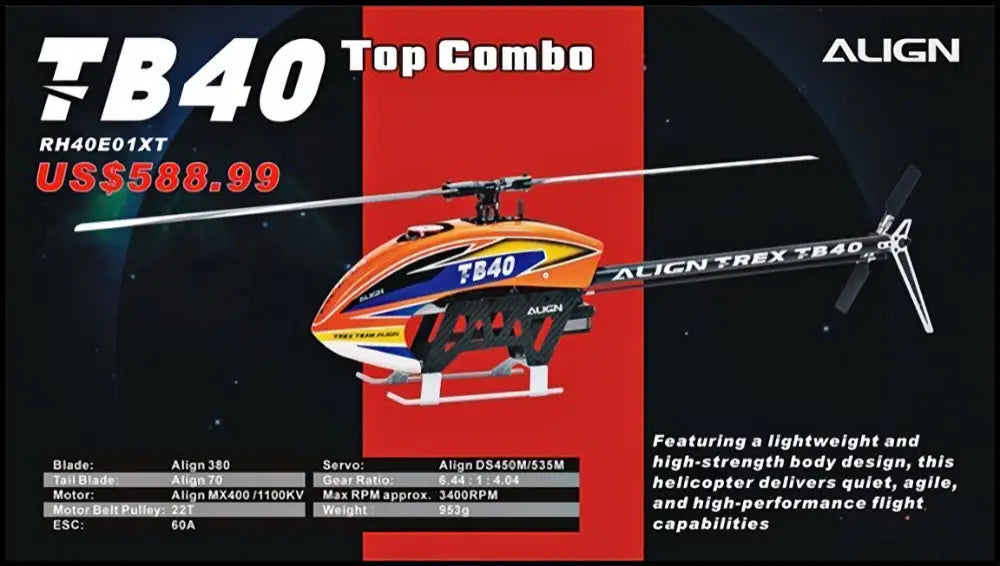

Align Trex TB40 Top Combo RH40E01X
Specification
- Length: 747mm - 29.41In
- Height: 223mm - 8.78In
- Width: 103mm - 4.06In
- Main Blade Length: 380mm - 14.96mm
- Main Rotor Diameter: 851mm - 33.50In
- Tail Blade Length: 70mm - 2.75In
- Tail Rotor Diameter: 188mm - 7.40In
- Motor Belt Pulley: 22T
- Belt Pulley: 40T
- Front Drive Main Shaft: 13T
- Main Drive Gear: 46T
- Drive Gear Ratio: 6.44 : 1 : 4.04
- Max RPM (approx): 3400
- Weight (with Battery): 953g - 2.10Lbs
- (ALIGN 6S 2200mAh)
Hobbywing Platinum 60A Details
- Continuous current: 60A
- Surge current: 80A
- Supporting input voltage: 3S~6S LiPo / 11.1V~22.2V
- Supporting battery types: Li-Poly 3~6 cells
- BEC output: 5~8V, Continuous 7A / Surge 18A
- Size: 48x30x15.5mm
- Weight: Approx. 49g - 1.73oz
Electric Equipment
- T-REX TB40 Kit x 1
- Hobbywing Platinum HV 60A
- 400MX Brushless Motor (1100KV/3220) x 1
- DS450M HV Servo x 3 Freq: 200hz
- DS535M HV Servo x 1 Pulse: 1520µs / Freq: 333hz
- MICROBEAST² Flybarless System x 1
- 380mm Carbon Fiber Blades x 1
- 70mm Carbon Fiber Tail Blades x 1
Additional Required Equipment
- Transmitter (6-channel or more, helicopter system)
- Receiver (6-channel or more)
- 6S Li-Po 1800 ~ 2200mAh x 2 Recommend 2200mAh
- Digital Pitch Gauge Part
- Hex Screw Driver Set
