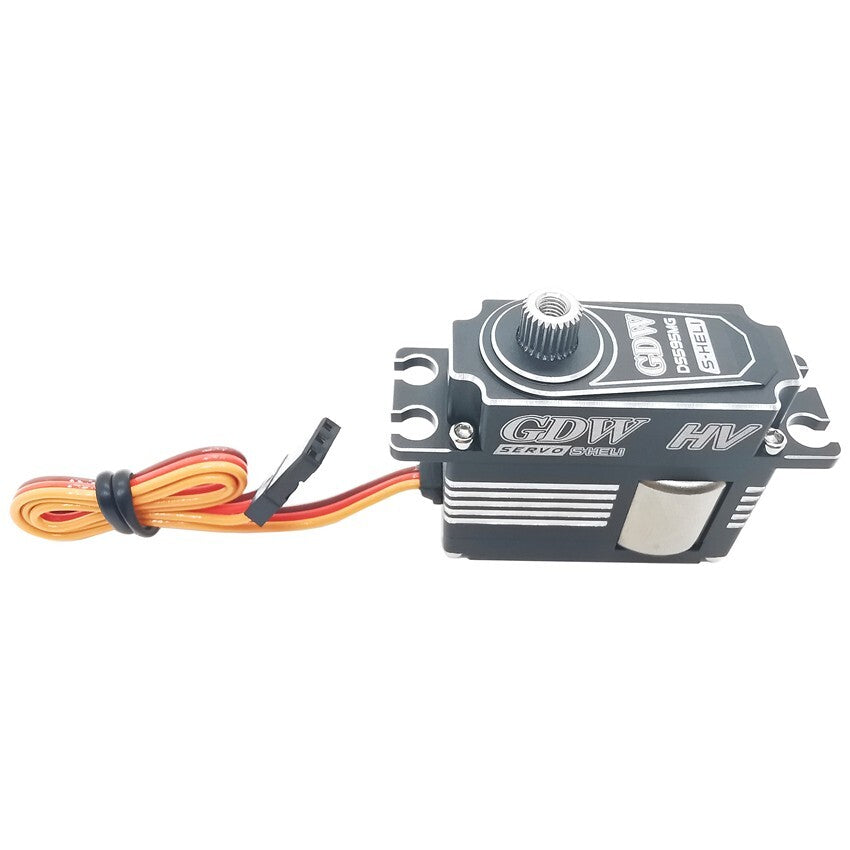

GDW DS595MG Tail Digital Servo
Regular price
£48.99 GBP
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Designed primarily as a dedicated tail rotor servo for RC helicopters (such as 380, 420, 450, and 500 sizes)

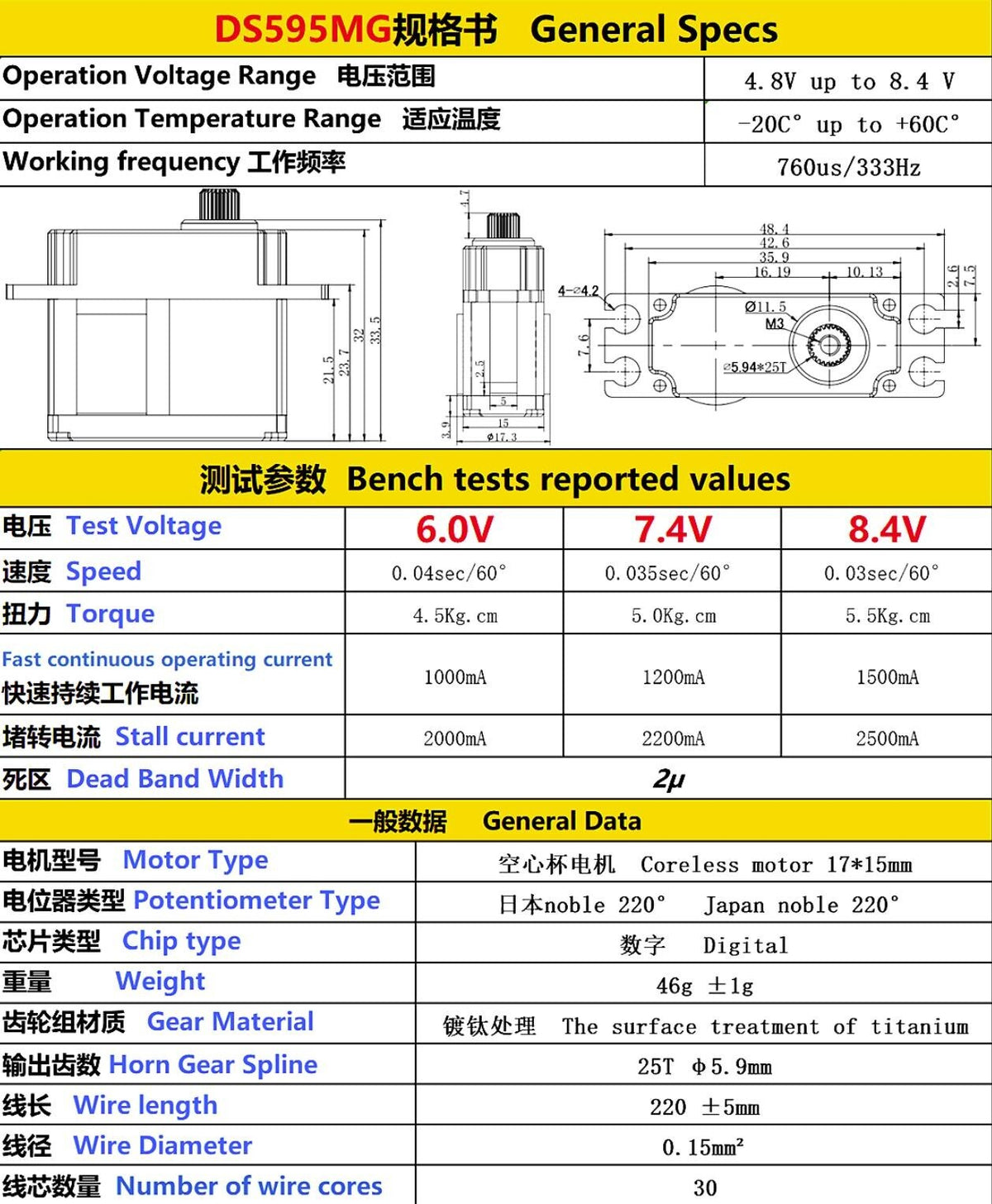

Key Specifications
Type: Digital Coreless Tail Servo (HV)
Working Frequency: 760µs / 333Hz (or up to 560Hz depending on flybarless setup)
Operating Voltage: DC 6.0V – 8.4V
Speed:
- 0.04 sec / 60° @ 6.0V
- 0.035 / 0.03 sec / 60° @ 8.4V
Stall Torque:
- 4.5 kg·cm / 4.0 kg·cm @ 6.0V
- 5.0 kg·cm – 5.5 kg·cm @ 8.4V
Motor: Coreless motor

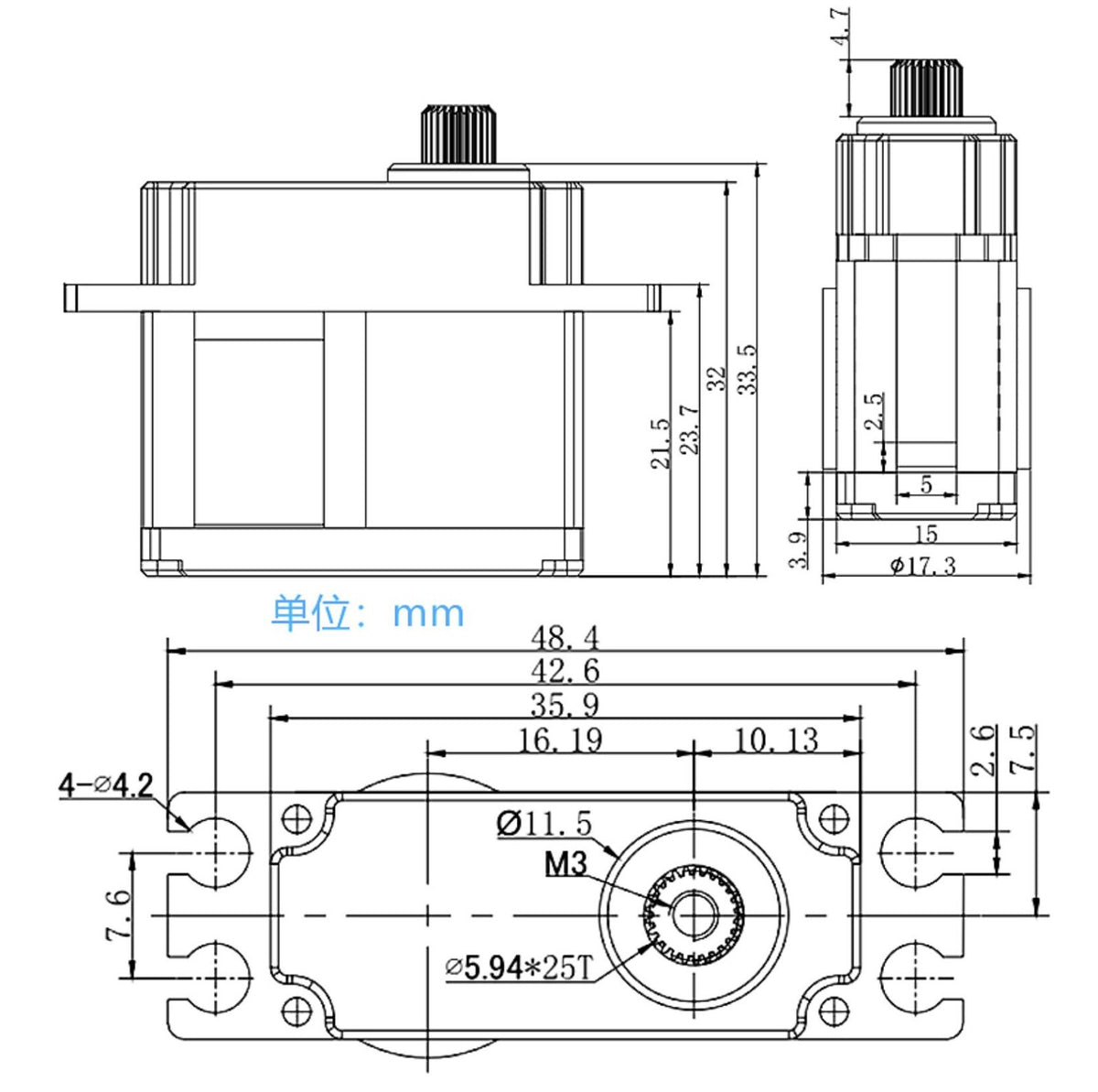

Dimensions: 31.5 x 15 x 36 mm
Weight: ~45g
Gear Type: Full metal gears (2BB dual ball bearing)
Spline: 25T (approx. 4.9mm)
