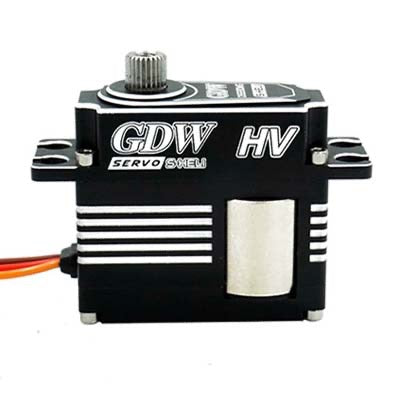

GDW DS590MG Digital Servo
Regular price
£48.99 GBP
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
A medium/midi-sized digital coreless metal-gear servo designed primarily for swashplates on 500-to-550 size RC helicopters.
Key Specifications
Motor Type: Coreless motor
Operating Voltage: DC 4.8V – 8.4V (HV compatible)
Working Frequency / Dead Band: 1520µs / 333Hz, 2µs dead band
Gear Material: Steel gears with titanium surface treatment / SUS303

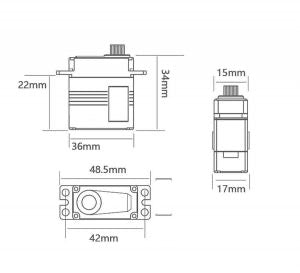

Dimensions: 31.5 x 15 x 36 mm
Weight: ~45g – 49g
Spline: 25T (5.9 mm diameter)
Performance by Voltage
At 6.0V:
- Speed: 0.08 sec / 60°
- Torque: 9.0 kg·cm
At 7.4V:
- Speed: 0.07 sec / 60°
- Torque: 10.5 kg·cm
At 8.4V:
- Speed: 0.06 sec / 60°
- Torque: 12.0 kg·cm
