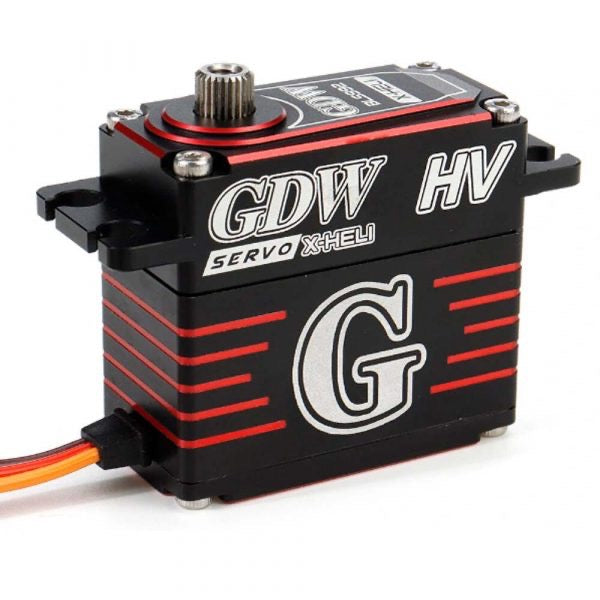

GDW BLS992HV Digital servo
Regular price
£74.99 GBP
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Key Specifications
Motor Type: Brushless digital motor (17 × 18 mm)
Operating Voltage: DC 4.8V – 8.4V
Stall Torque / Speed:
- 20 kg·cm at 0.08 sec/60° (@ 6.0V)
- 25 kg·cm at 0.05 sec/60° (@ 7.4V)
- 28 kg·cm at 0.055 sec/60° (or up to 0.03 sec/60° depending on rating profile) (@ 8.4V)
Working Frequency / Signal: 1520 µs / 333 Hz
Gears & Bearings: Full metal hardened steel gear set with dual ball bearings (2BB)
Case: CNC aluminum alloy heat-dissipating case

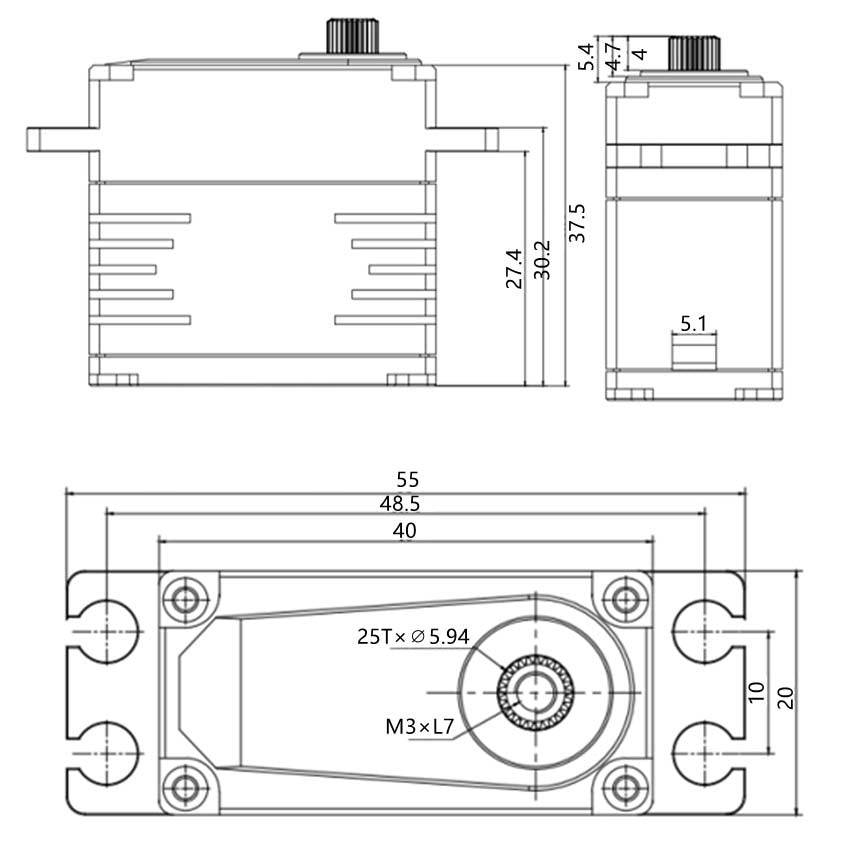

Dimensions: 40.5 × 20 × 37.3 mm (or ~38.6 mm depending on mounting tabs)
Weight: 80 g
Spline: Standard 25T Futaba spline
