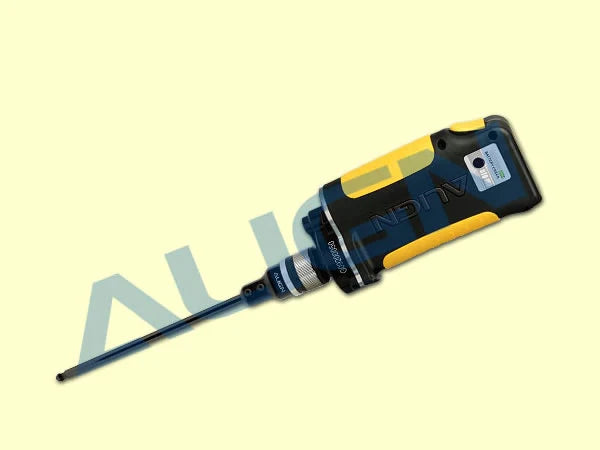

Align Super Starter For Helicopter STQ 100 : HFSSTQ01T

Ergonomically designed for optimal hand grip to prevent slippage, light weight, and easy to assemble/disassemble for transport ease. Suitable for fixed wing airplanes or helicopters, engine can be started with a simple one hand press on the button.

- Suitable for up to 50cc gasoline engine or 300 class nitro engine.

- Designed for user replaceable, common 450 heli sized

3S1P 1900~2300mAh/16c lipo batteries. Fully charged battery is

capable of 500 starts and beyond. Battery packs are charged with any

T-REX 450 battery chargers.

- Starting adaptor includes double one way bearing design.

- High efficiency motor providing high starting power, and low reacting

force.

- LED battery voltage indicator and over-discharge protection circuitry.

- Battery undervoltage protection.

- Overheating protection

- Protection against stalling by flooded torque overloading engine.

- Suitable battery:Li-Po 3S1P 11.1V 1900~2300mAh 16C and above(maximum size 112x35x24mm)

- No load rotation speed:2300rpm

- Battery undervoltage:10.8V

- Quiescent current:0 mA

- Motor overheat protection:80°C

- Decelerate gear ratio:5.3:1

- Size:80x60x390mm

- Weight:700g (w/o battery)

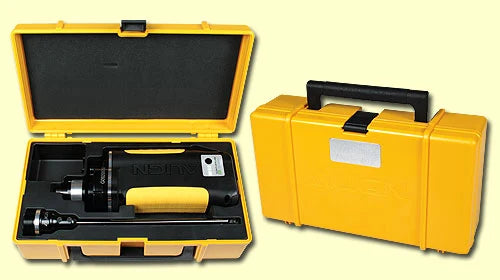

Accessories:

- Starter body x 1

- Helicopter Starter Shaft x 1

Option: Battery:3S1P 11.1V 1900~2300mAh 16C and above Li-Poly battery
